Streamlit Dashboard¶

The Streamlit dashboard provides a user-friendly web interface for business users to generate sales predictions without writing code or using API endpoints. It acts as the front-end layer that consumes the FastAPI prediction service, abstracting away technical complexity.

Location: deployment/streamlit/

Port: 8501

Framework: Streamlit (multi-page app)

Why a User Interface?¶

While the FastAPI service provides powerful prediction capabilities through a REST API, it requires technical knowledge to use effectively (crafting HTTP requests, handling JSON, etc.). A user interface solves this problem by:

Accessibility¶

No coding required: Business analysts and store managers can generate predictions through forms and file uploads
Self-service analytics: Users can run predictions on-demand without waiting for data science team
Lower barrier to entry: Anyone who can use Excel can use the dashboard

User Experience¶

Visual feedback: Real-time status indicators show API connection, model availability, and prediction results
Error prevention: Client-side validation catches issues before making API calls, providing immediate feedback
Guided workflows: Clear forms, help text, and examples walk users through the prediction process

Productivity¶

Batch operations: Upload CSV files to get hundreds of predictions in seconds
Quick iteration: Modify inputs and re-run predictions without restarting processes
Downloadable results: Export predictions to CSV for further analysis in Excel or BI tools

Business Value¶

Faster decision-making: Store managers can forecast sales for promotion planning without technical dependencies
Data democratization: Predictions accessible to non-technical stakeholders across the organization
Adoption: Visual interfaces drive higher ML model adoption than APIs alone

Dashboard Overview¶

The application uses Streamlit's multi-page architecture with three main sections:

1. Home Page (Landing)¶

Purpose: System status dashboard and quick start guide

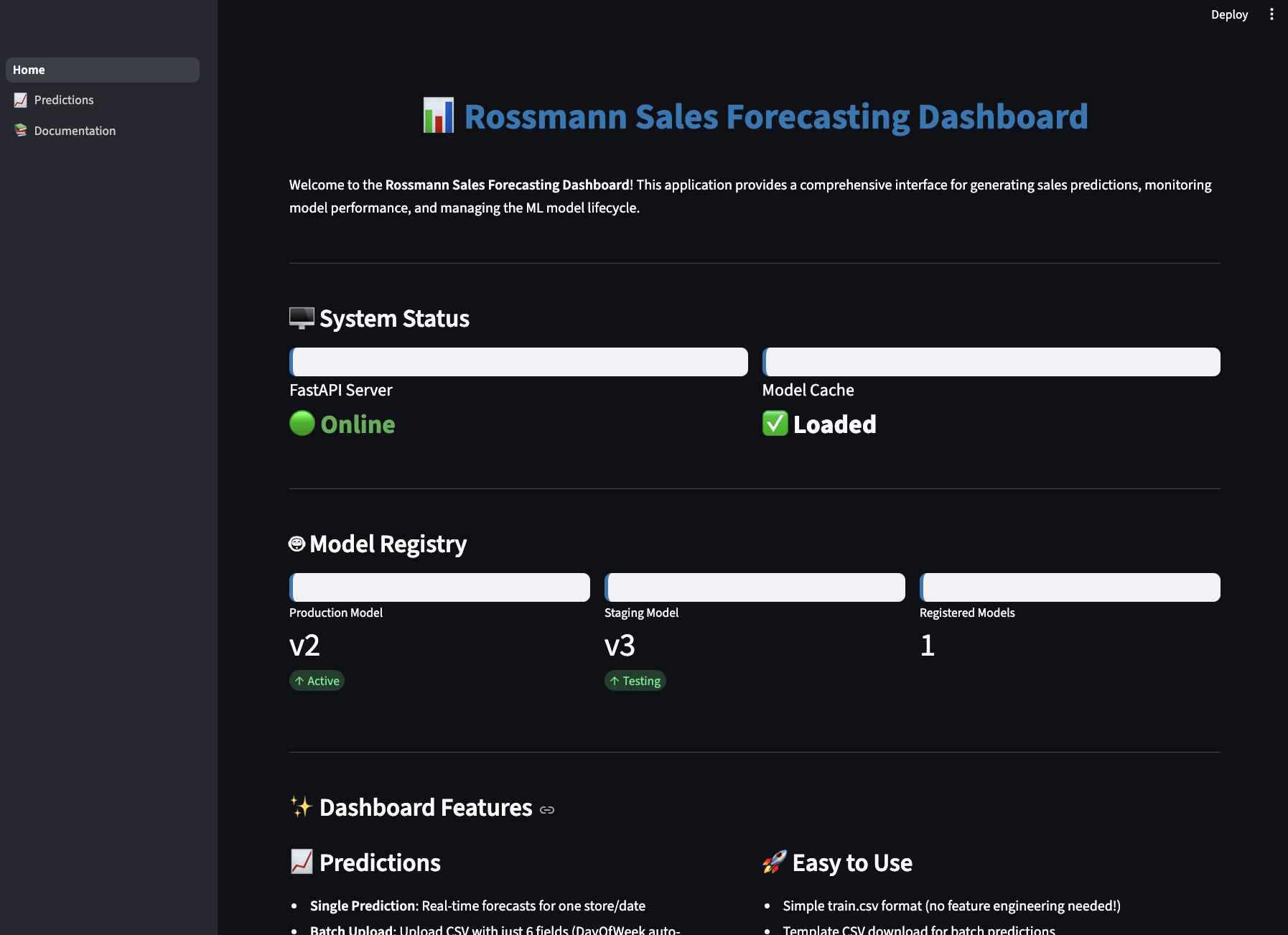

Streamlit Home Page

Key Features:

System Health Monitor
- FastAPI server status (Online/Offline indicator)
- Model cache status (Loaded/Not Loaded)
- Real-time connection testing
Model Registry Dashboard
- Production model version
- Staging model version
- Count of registered models
Feature Overview
- Highlights of prediction capabilities
- Supported input formats
- Links to documentation
Quick Start Instructions
- Step-by-step guide for first-time users
- API server startup commands
- Navigation tips

When to use: First stop for new users; check system status before making predictions

2. Predictions Page¶

Purpose: Generate sales forecasts through two prediction modes

Mode 1: Single Prediction¶

Use case: Quick forecast for one store on one date

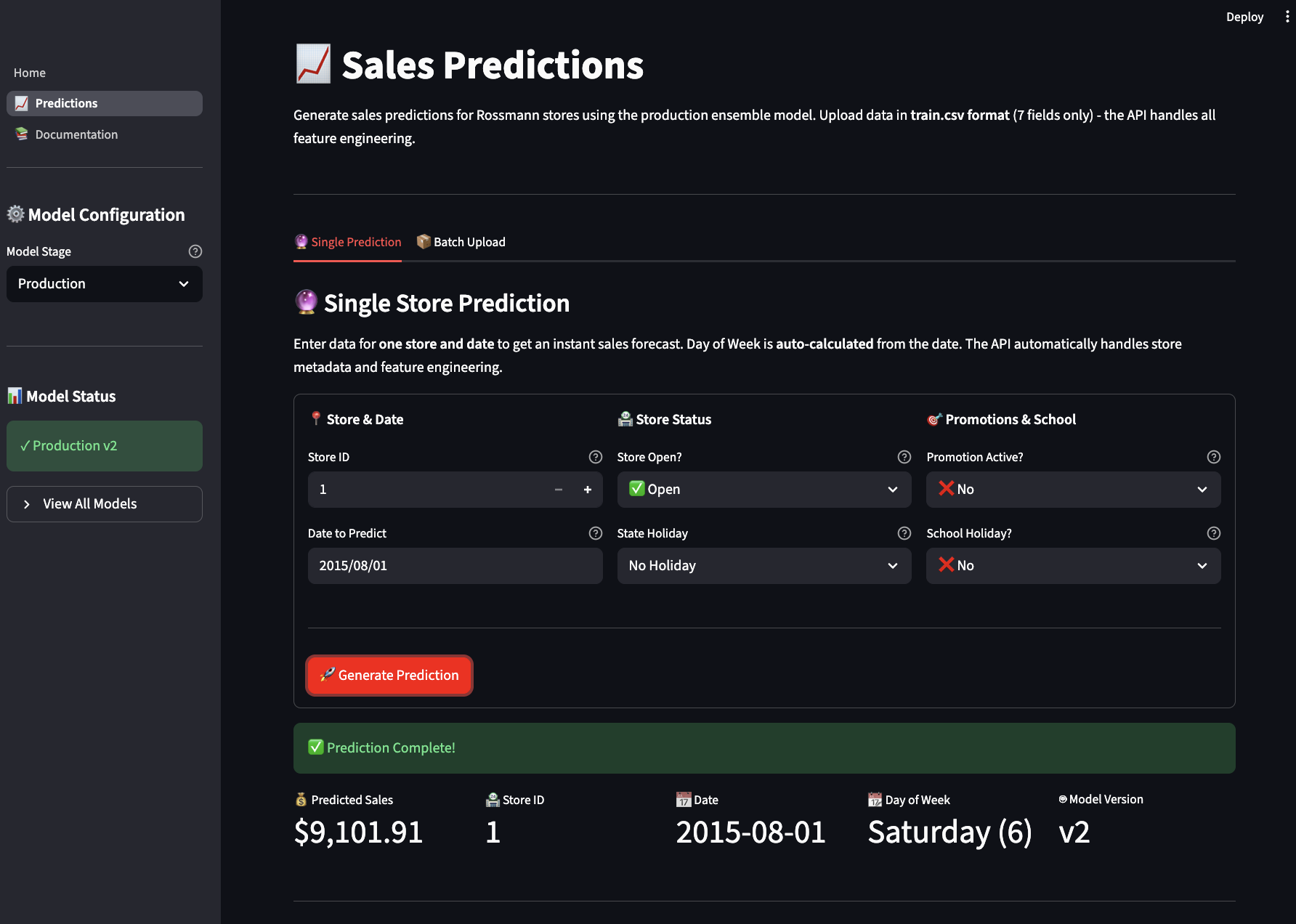

Single Prediction Interface

Features:

Smart input form with three columns:
- Store details: Store ID (1-1115)
- Date selection: Calendar picker (Day of Week auto-calculated!)
- Store conditions: Open, Promo, StateHoliday, SchoolHoliday toggles
Real-time validation
- Store ID range checking
- Date format validation
- Required field enforcement
Instant results
- Predicted sales value
- Model version used
- Confidence indicators

Example workflow:

Select Store ID from dropdown (e.g., Store 25)
Pick date from calendar (DayOfWeek calculated automatically)
Toggle switches for Open (Yes), Promo (Yes), Holidays (No)
Click "Generate Prediction"
See forecast: "Predicted Sales: €5,234.56"

Mode 2: Batch Upload¶

Use case: Forecast for multiple stores/dates at once

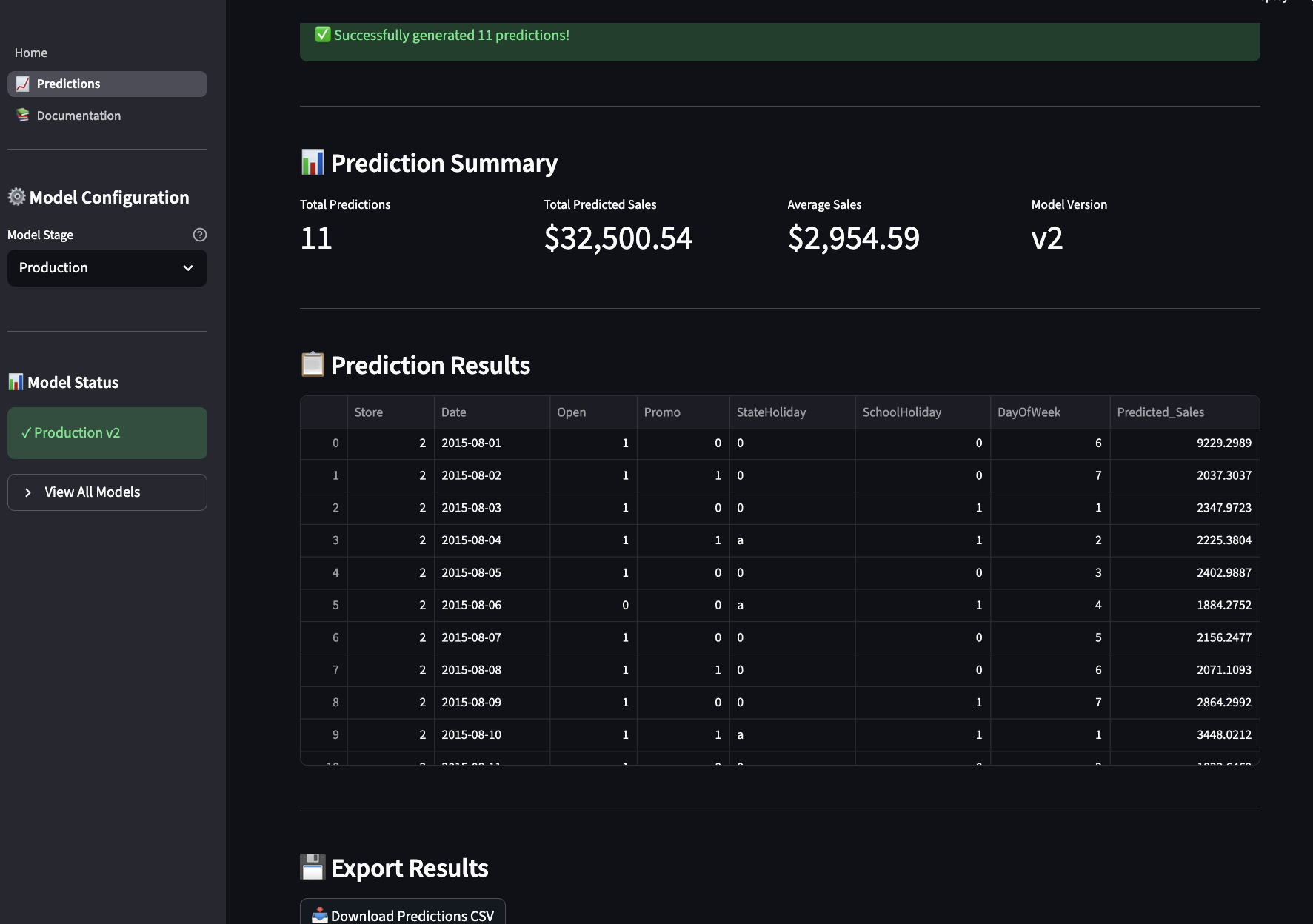

Batch Predictions Interface

Features:

CSV template download
- Pre-formatted template with correct column names
- Example rows showing proper format
- Only 6 fields required (DayOfWeek auto-calculated)
Flexible date parsing
- Supports multiple formats: YYYY-MM-DD, MM/DD/YY, MM/DD/YYYY
- Automatic normalization to API format
File upload validation
- Schema checking (required columns present)
- Data type validation (Store as integer, Date as valid format)
- Range validation (Store 1-1115, valid dates)
Batch processing
- Sends all rows to API in single request
- Progress indicator during processing
- Handles 100s of predictions efficiently
Enhanced results table
- Original input columns preserved
- Prediction column appended
- Sortable and filterable
- Download as CSV
Store-level analytics
- Average predicted sales by store
- Min/max predictions
- Prediction distribution charts

Example workflow:

Click "Download CSV Template"
Open template in Excel
Fill in Store, Date, Open, Promo, StateHoliday, SchoolHoliday (6 columns)
Save as CSV
Upload to dashboard
Review predictions table
Download results with predictions added

CSV Template Format:

Store,Date,Open,Promo,StateHoliday,SchoolHoliday
1,2015-08-01,1,1,0,0
2,2015-08-02,1,0,0,0
3,2015-08-03,0,0,a,1

After prediction:

Store,Date,Open,Promo,StateHoliday,SchoolHoliday,DayOfWeek,Predicted_Sales
1,2015-08-01,1,1,0,0,6,5234.56
2,2015-08-02,1,0,0,0,7,4821.33
3,2015-08-03,0,0,a,1,1,0.00

3. Documentation Page¶

Purpose: API reference and integration examples

Content:

API Endpoints: Interactive examples of /predict, /health, /model/info
Request/Response Formats: JSON schemas with real examples
curl Commands: Copy-paste ready commands for testing
Python Integration: Code snippets using requests library
Error Handling: Common errors and troubleshooting

When to use: Developers integrating predictions into other systems

Key Design Features¶

Automatic Day of Week Calculation¶

Problem: train.csv format requires DayOfWeek (1-7), but users think in dates

Solution: Dashboard calculates DayOfWeek from Date automatically

Single prediction: Hidden from user entirely
Batch upload: Calculated during CSV processing
Users only need to provide Date field

Client-Side Validation¶

Why: Prevent unnecessary API calls for invalid data

What's validated:

Store ID: Must be integer between 1 and 1115
Date: Must be valid date in supported format
Open: Must be 0 or 1
Promo: Must be 0 or 1
StateHoliday: Must be one of: 0, a, b, c
SchoolHoliday: Must be 0 or 1

User experience:

Immediate feedback as user types
Red error messages with actionable instructions
Form submission disabled until all fields valid

Model Stage Selection¶

Feature: Dropdown to choose Production vs Staging model

Use cases:

Production: Default for business predictions
Staging: A/B testing new model before promotion

Implementation:

Sidebar dropdown persists across tabs
Model version shown in sidebar
Stage passed to API with each request

Error Handling¶

API Offline:

⚠️ FastAPI server is not running. The Predictions page requires the API server to be active.

To start the API server:
cd deployment/api && python main.py

The API will be available at http://localhost:8000

No Model Available:

❌ No Production model available

You need to:
1. Train and register a model in MLflow
2. Promote model to Production stage
3. Restart FastAPI to load the model

Invalid Input:

❌ Validation Error
- Store ID must be between 1 and 1115 (got: 9999)
- Date must be in YYYY-MM-DD format (got: "08/01/15")

Running the Dashboard¶

Quick Start (Recommended)¶

Use the automated launch script:

bash scripts/launch_streamlit.sh

What it does:

Activates virtual environment
Checks for Streamlit dependency
Navigates to streamlit directory
Starts app with proper configuration
Opens browser automatically

Manual Start¶

If you prefer direct control:

cd deployment/streamlit
streamlit run Home.py

Access the dashboard:

URL: http://localhost:8501
Auto-opens: Browser launches automatically
Hot reload: Changes to .py files reload app instantly

Production Deployment¶

For production deployment with authentication:

# Using Docker
docker build -t rossmann-streamlit -f deployment/streamlit/Dockerfile .
docker run -p 8501:8501 rossmann-streamlit

# Using systemd service
sudo cp deployment/streamlit/streamlit.service /etc/systemd/system/
sudo systemctl enable streamlit
sudo systemctl start streamlit

Technical Architecture¶

Multi-Page Structure¶

deployment/streamlit/
├── Home.py                    # Landing page (system status)
├── pages/
│   ├── 1_📈_Predictions.py    # Prediction interface
│   └── 2_📚_Documentation.py  # API reference
└── utils/
    ├── api_client.py          # FastAPI communication
    └── validation.py          # Input validation logic

How it works:

Home.py is the entry point (landing page)
Files in pages/ become navigation items automatically
Number prefix controls page order (1_, 2_, etc.)
Emoji in filename becomes page icon in sidebar

API Client (`utils/api_client.py`)¶

Purpose: Abstraction layer for FastAPI communication

Key methods:

class APIClient:
    def health_check() -> dict
    def get_model_info() -> dict
    def predict(inputs: list, model_stage: str) -> dict

Benefits:

Centralized error handling
Automatic retries on connection errors
Consistent request formatting
Timeout management

Validation Module (`utils/validation.py`)¶

Purpose: Client-side data validation before API calls

Key functions:

def validate_single_prediction_input(data: dict) -> tuple[bool, str]
def validate_batch_csv(df: pd.DataFrame) -> tuple[bool, str]
def process_batch_csv(file) -> pd.DataFrame
def get_csv_template() -> pd.DataFrame
