Experiment Tracking

Why Track Experiments?

When developing machine learning models, data scientists typically experiment with many different approaches:

• Simple baselines to establish performance benchmarks
• Different algorithms (linear models, tree-based models, neural networks)
• Hyperparameter variations across hundreds of trials
• Feature engineering strategies
• Ensemble methods combining multiple models

Without proper tracking, it becomes impossible to:

• Remember which hyperparameters produced the best results
• Compare model performance across experiments
• Reproduce previous results
• Share findings with team members
• Understand what you've already tried

This is where MLflow experiment tracking becomes essential.

Experimentation Workflow in This Project

This project demonstrates a realistic data science workflow from simple to advanced models:

graph TD
    A[Notebook 03: Baseline Models] --> B[MLflow: Log Naive Baseline]
    A --> C[MLflow: Log Simple LightGBM]
    A --> D[MLflow: Log Simple XGBoost]

    E[Notebook 04: Hyperparameter Tuning] --> F[MLflow: 100+ LightGBM Trials]
    E --> G[MLflow: 100+ XGBoost Trials]
    E --> H[MLflow: 100+ CatBoost Trials]
    E --> I[MLflow: Ensemble Experiments]

    F --> J[Identify Best Hyperparameters]
    G --> J
    H --> J
    I --> J

    J --> K[Notebook 05: Final Model]
    K --> L[MLflow: Register Final Model]
    K --> M[Save: config/best_hyperparameters.json]

    L --> N[MLflow Model Registry]

    style A fill:#e1f5ff
    style E fill:#e1f5ff
    style K fill:#e1f5ff
    style J fill:#fff4e6
    style M fill:#e8f5e9
    style N fill:#f3e5f5

Notebook 03: Baseline Models

Start with simple models to establish performance benchmarks:

• Naive baseline: Last week's sales as prediction
• Simple LightGBM: Default hyperparameters with basic features
• Simple XGBoost: Default hyperparameters with basic features
• Goal: Establish minimum acceptable performance (RMSPE baseline)

MLflow tracks: Model type, basic hyperparameters, cross-validation RMSPE per fold

Notebook 04: Advanced Models & Hyperparameter Tuning

Systematically explore advanced models with Optuna hyperparameter optimization:

• LightGBM tuning: 100+ trials exploring learning rate, tree depth, regularization
• XGBoost tuning: 100+ trials with different boosting strategies
• CatBoost tuning: 100+ trials optimizing categorical handling
• Ensemble development: Weighted combination of best individual models

MLflow tracks: All Optuna trials, best hyperparameters, ensemble weights, final performance

Output: Identifies best hyperparameters for each model type

Notebook 05: Final Model Training

Train the final production model using best hyperparameters discovered in Notebook 04:

• Load best hyperparameters: From Optuna optimization results
• Train final ensemble: LightGBM, XGBoost, CatBoost with optimal settings
• Evaluate on holdout test set: Simulate real-world performance
• Register to MLflow: Save final model to Model Registry
• Save configuration: Write config/best_hyperparameters.json for production use

MLflow tracks: Final model training run, test set performance, model registration

Output:

• Best hyperparameters saved to config/best_hyperparameters.json
• Final model registered in MLflow Model Registry

What MLflow Tracks

For every experiment run, MLflow automatically logs:

• Hyperparameters: Learning rates, tree depths, regularization parameters, ensemble weights
• Metrics: RMSPE, RMSE, MAE, MAPE per fold + overall CV scores
• Artifacts: Trained model files, configuration files, prediction CSV outputs
• Data Versions: DVC commit hashes linking experiments to specific data snapshots
• Training Time: Per-model and total training duration
• System Info: Python version, library versions, hardware specs
• Tags: Experiment type (baseline, tuning, ensemble), model family, notes

Launching MLflow UI

After running any of the experimentation notebooks (03, 04, or 05), launch MLflow to explore your experiments:

# Start MLflow server
mlflow ui

# Or use custom port
mlflow ui --port 8080

Open browser to: http://localhost:5000

The MLflow UI allows you to:

• Compare models side-by-side to see which hyperparameters worked best
• Filter runs by metrics (e.g., metrics.cv_rmspe_mean < 0.10)
• Sort by performance to find top models instantly
• Download artifacts (trained models, predictions) for further analysis
• Trace lineage to see which data version was used for each experiment

Tracking in Notebooks

All experiments in notebooks/03, notebooks/04, and notebooks/05 use MLflow tracking. Each model training run is wrapped in an MLflow context that automatically logs everything needed to reproduce and compare experiments.

How Tracking Works

Every model run follows this pattern:

1. Start a run with a descriptive name
2. Log hyperparameters (all model settings)
3. Train the model with time-series cross-validation
4. Log performance metrics (RMSPE, RMSE, MAE per fold)
5. Save artifacts (trained model, predictions, configuration)
6. Log metadata (data version, tags, notes)

This creates a complete record of each experiment that you can review, compare, and reproduce later.

Example: Tracking a Model Run

import mlflow
import mlflow.sklearn
from datetime import datetime

# Start a run with descriptive name
with mlflow.start_run(run_name="lightgbm_tuning_trial_42"):
    # 1. LOG HYPERPARAMETERS
    # Track all model configuration so you can reproduce results
    mlflow.log_param("model_type", "LightGBM")
    mlflow.log_param("learning_rate", 0.01)
    mlflow.log_param("max_depth", 6)
    mlflow.log_param("num_leaves", 31)
    mlflow.log_param("feature_fraction", 0.8)
    mlflow.log_param("bagging_fraction", 0.7)
    mlflow.log_param("bagging_freq", 5)
    mlflow.log_param("min_child_samples", 20)

    # 2. TRAIN MODEL
    # Use time-series cross-validation (5 folds)
    cv_scores = []
    for fold_idx, (train_idx, val_idx) in enumerate(cv_folds):
        # Train on fold
        model = LGBMRegressor(**hyperparameters)
        model.fit(X_train[train_idx], y_train[train_idx])

        # Evaluate on validation fold
        y_pred = model.predict(X_train[val_idx])
        fold_rmspe = rmspe(y_train[val_idx], y_pred)
        cv_scores.append(fold_rmspe)

        # Log per-fold metrics
        mlflow.log_metric(f"fold_{fold_idx}_rmspe", fold_rmspe)

    # 3. LOG OVERALL PERFORMANCE METRICS
    # These are the key metrics for comparing models
    mlflow.log_metric("cv_rmspe_mean", np.mean(cv_scores))
    mlflow.log_metric("cv_rmspe_std", np.std(cv_scores))
    mlflow.log_metric("cv_rmspe_min", np.min(cv_scores))
    mlflow.log_metric("cv_rmspe_max", np.max(cv_scores))

    # Also log alternative metrics for analysis
    mlflow.log_metric("cv_rmse_mean", rmse_mean)
    mlflow.log_metric("cv_mae_mean", mae_mean)

    # 4. SAVE TRAINED MODEL
    # MLflow packages the model with dependencies
    mlflow.sklearn.log_model(
        model,
        artifact_path="model",
        registered_model_name=None  # Don't register yet (only final model)
    )

    # 5. LOG ARTIFACTS
    # Save predictions for offline analysis
    predictions_df.to_csv("temp_predictions.csv", index=False)
    mlflow.log_artifact("temp_predictions.csv", artifact_path="predictions")

    # Save feature importance for model interpretation
    feature_importance_df.to_csv("temp_feature_importance.csv", index=False)
    mlflow.log_artifact("temp_feature_importance.csv", artifact_path="analysis")

    # 6. LOG METADATA AND TAGS
    # Track data version for reproducibility
    mlflow.log_param("data_version", "dvc_commit_hash_abc123")
    mlflow.log_param("n_train_samples", len(X_train))
    mlflow.log_param("n_features", X_train.shape[1])

    # Tag for easy filtering in UI
    mlflow.set_tag("experiment_type", "hyperparameter_tuning")
    mlflow.set_tag("model_family", "tree_based")
    mlflow.set_tag("notebook", "04-advanced-models")
    mlflow.set_tag("date", datetime.now().strftime("%Y-%m-%d"))

    # Add notes about this run
    mlflow.set_tag("notes", "Exploring lower learning rate with deeper trees")

What Gets Tracked

After running this code, MLflow captures a complete snapshot of your experiment:

Component	What's Logged	Example
Run Name	Descriptive identifier	"lightgbm_tuning_trial_42"
Parameters	All hyperparameters and config	learning_rate=0.01, max_depth=6
Metrics	Performance scores	cv_rmspe_mean=0.0987, per-fold RMSPE
Artifacts	Files (models, predictions, plots)	Trained model, predictions CSV, feature importance
Tags	Searchable metadata	experiment_type="tuning", notebook="04"
System Info	Environment details	Python version, library versions
Timing	Duration	Training time per fold, total run time

Experiment Organization in MLflow

Each notebook defines its own experiment name when calling mlflow.start_run(). The run name identifies individual model training runs within that experiment.

Example from notebooks:

# In notebook 03
with mlflow.start_run(run_name="naive_last_week_baseline"):
    # Train and log naive baseline model
    ...

# In notebook 04
with mlflow.start_run(run_name="lightgbm_trial_42"):
    # Train and log a specific hyperparameter configuration
    ...

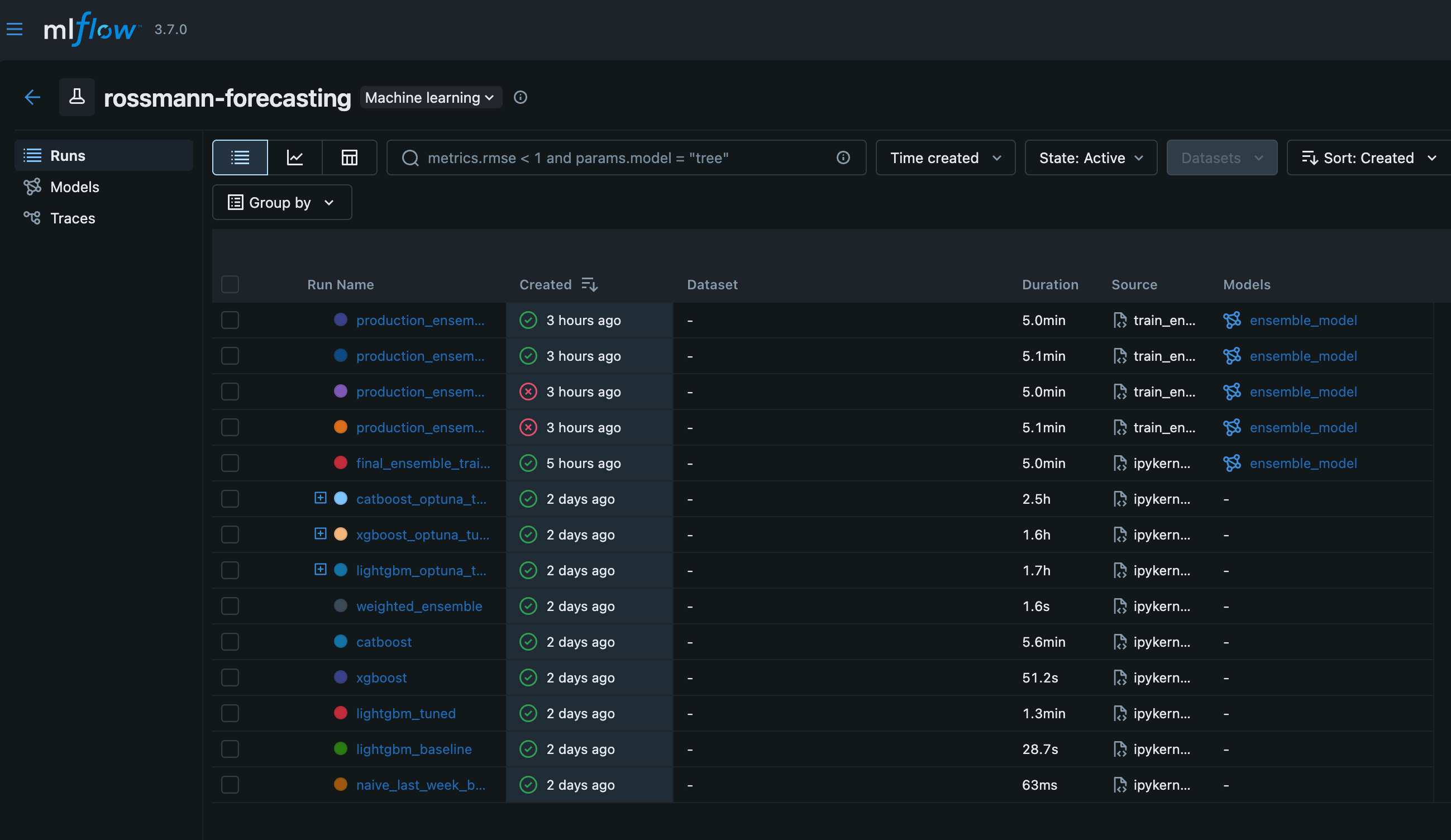

What you'll see in MLflow UI:

• Experiments: Organized by notebook or purpose (e.g., baseline experiments, tuning experiments)
• Runs: Individual model training runs with descriptive names (e.g., "naive_last_week_baseline", "lightgbm_trial_42")
• Metrics: Performance metrics (RMSPE, RMSE, etc.) for each run
• Parameters: Hyperparameters used for each run
• Artifacts: Saved models, predictions, feature importance files

This organization makes it easy to:

• Compare different model architectures side-by-side
• Track hyperparameter tuning progress
• Filter runs by performance metrics
• Reproduce results from any experiment

Best Practices

1. Use descriptive run names: Choose names that clearly identify the experiment (e.g., "lightgbm_lr0.01_depth6" instead of "trial_42")
2. Tag runs consistently: Always tag with experiment_type, model_family, and notebook for easy filtering
3. Log data versions: Include DVC commit hashes to link experiments to specific data snapshots
4. Document insights: Use the notes tag to capture observations, hypotheses, and lessons learned
5. Track all parameters: Log not just model hyperparameters but also feature engineering settings and CV configuration
6. Save artifacts liberally: Store predictions, feature importance, and diagnostic plots for later analysis
