Monitoring Dashboard Guide

This page provides a guide to using the monitoring dashboard integrated into the Streamlit deployment.

How to Launch the Dashboard

The monitoring dashboard is integrated into the main Streamlit application as a separate page. To launch the complete deployment stack including the monitoring dashboard:

# Launch all services (MLflow, FastAPI, Streamlit)
bash scripts/launch_dashboard.sh

Once launched, access the monitoring page at:

  • Main Dashboard: http://localhost:8501
  • Monitoring Page: Click "📊 Monitoring" in the left sidebar

The monitoring page will display usage statistics and provide tools for drift detection analysis.

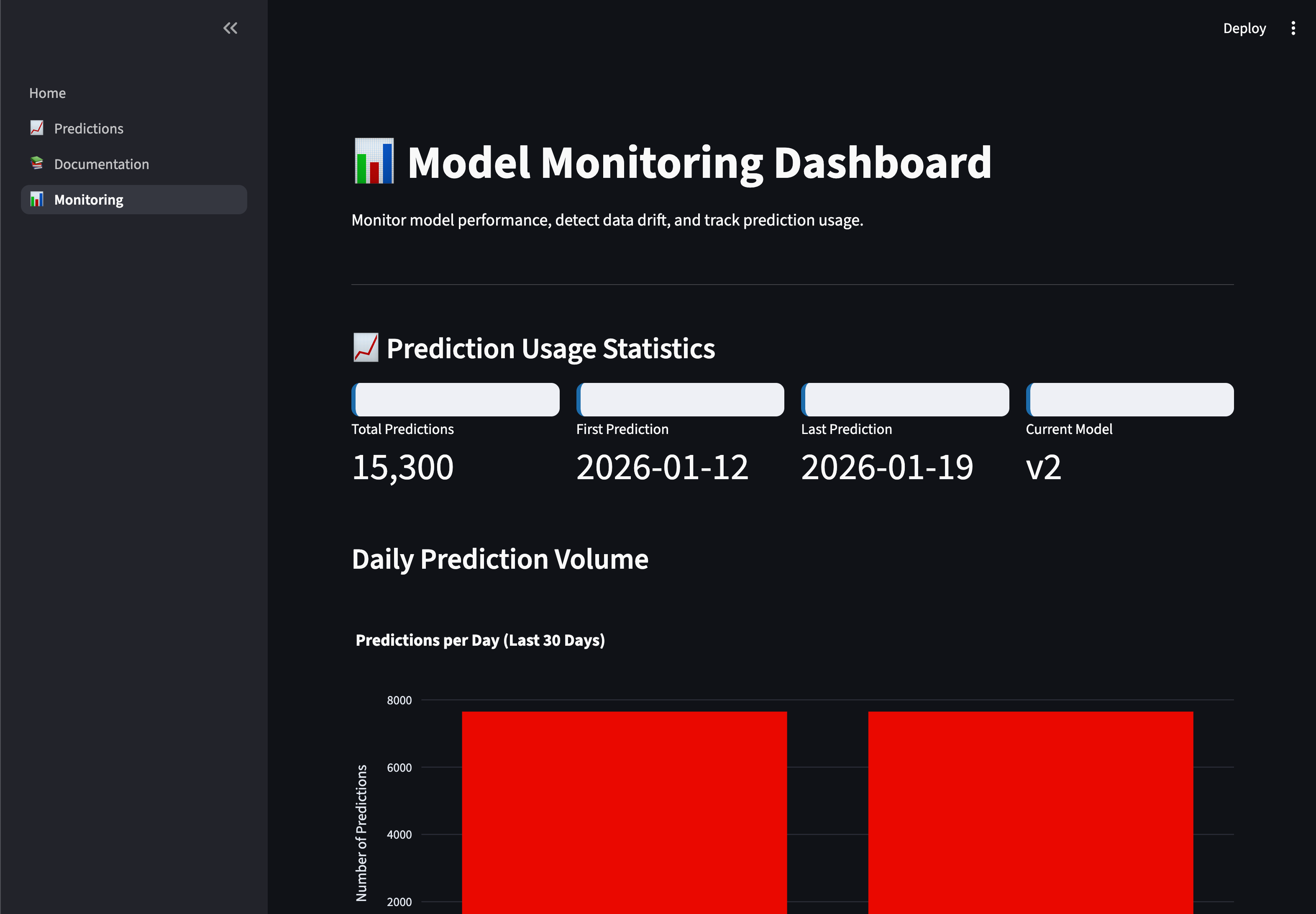

Monitoring Dashboard

Generating Monitoring Data

Important: In order to see meaningful results on the monitoring dashboard, you need to first make predictions. The system logs prediction data which is then used for drift detection and usage analysis.

How to generate prediction data:

  1. Individual predictions: Navigate to the "📈 Predictions" page in the Streamlit app and make single predictions using the interactive form
  2. Batch predictions: Upload a CSV file with multiple store/date combinations on the Predictions page for bulk prediction generation

As predictions are made, the system automatically logs:

  • Input features (7 raw fields + 46 engineered features)
  • Prediction values
  • Model version used
  • Timestamp metadata

This logged data is then available for monitoring analysis on the dashboard.

Dashboard Sections

The monitoring dashboard is organized into two main sections:

1. Prediction Usage Statistics

Purpose: Track prediction volume and model version distribution

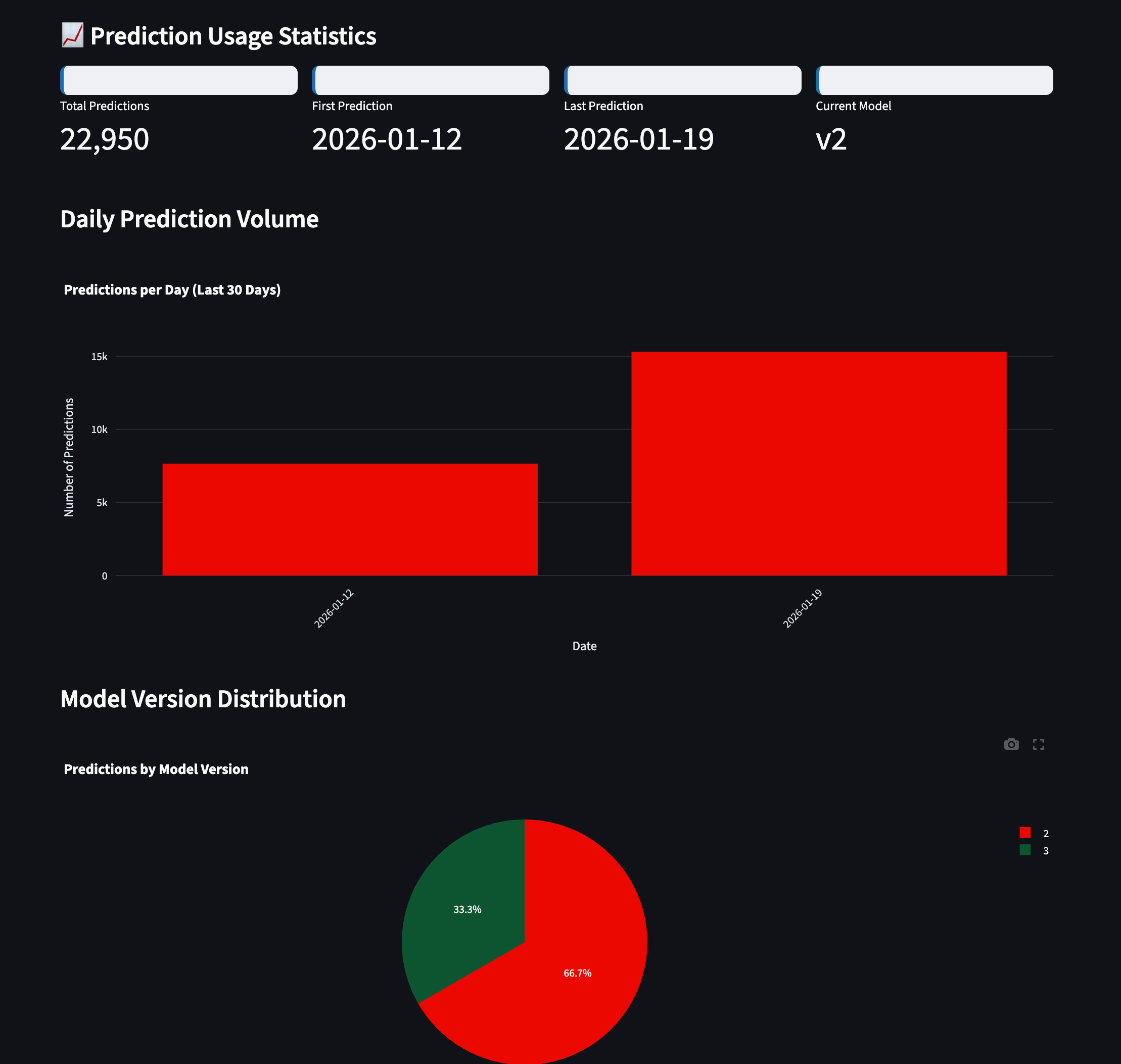

Prediction Usage Statistics

Metrics displayed:

  • Total Predictions: Cumulative count of all predictions made
  • First Prediction: Date of earliest prediction in database
  • Last Prediction: Date of most recent prediction
  • Current Model: Active model version serving predictions

Visualizations:

  • Daily Prediction Volume: Bar chart showing predictions per day (last 30 days)
  • Model Version Distribution: Pie chart showing prediction count by model version

Use cases:

  • Monitor API usage trends
  • Identify prediction volume spikes or drops
  • Track model version adoption after deployments
  • Detect anomalies in prediction patterns

2. Data Drift Detection

Purpose: Compare production data distributions against training data to detect drift

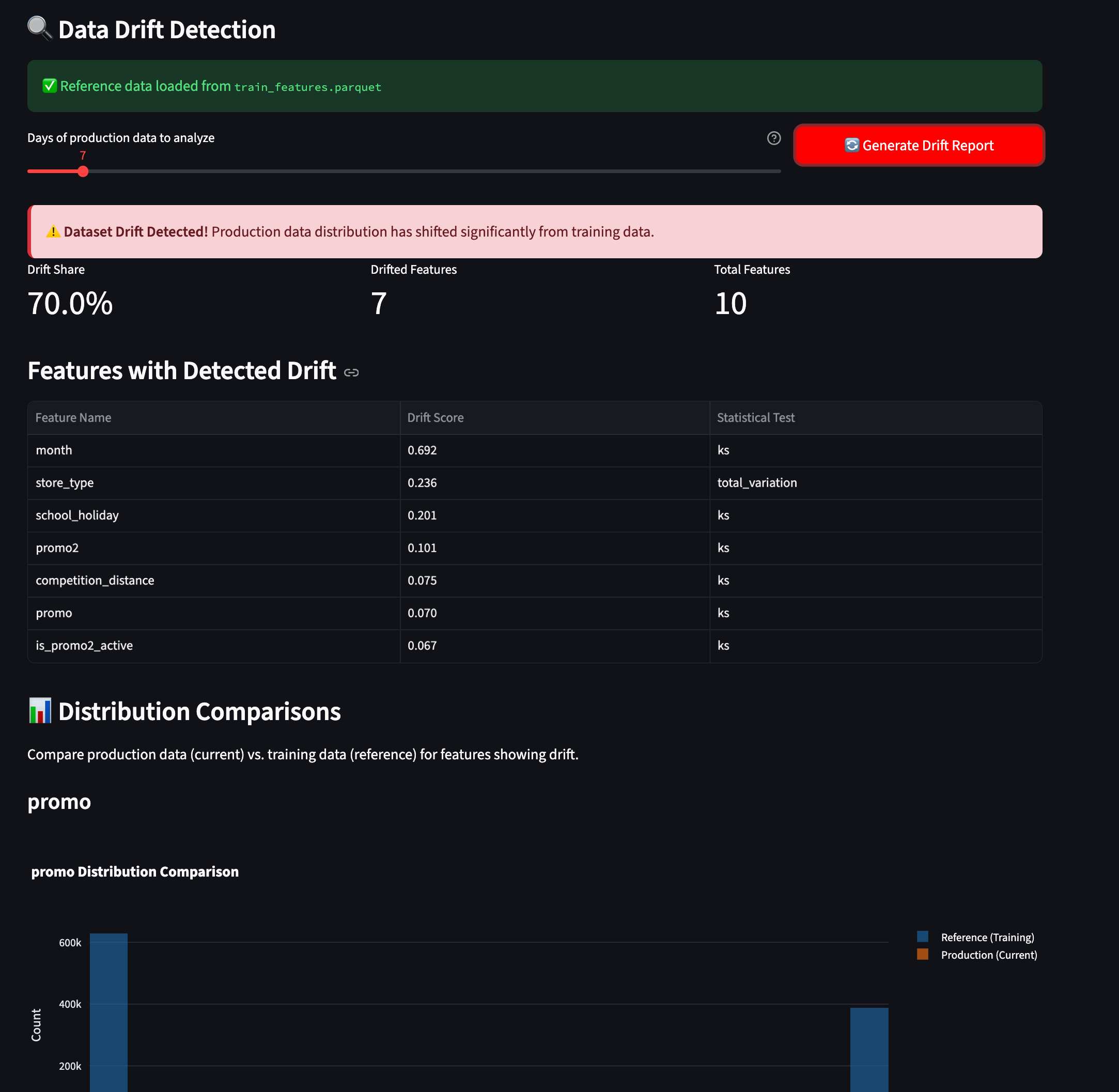

Data Drift Detection

Prerequisites

Before generating drift reports, ensure:

  1. Reference data exists: Training features at data/processed/train_features.parquet
  2. Predictions logged: At least a few days of production predictions in database
  3. DataOps workflow completed: Run bash scripts/dataops_workflow.sh if needed

Generating a Drift Report

Step 1: Select analysis window

Use the slider to choose how many days of production data to analyze:

  • Minimum: 1 day
  • Maximum: 90 days
  • Recommended: 7 days (one week)
  • Extended analysis: 30 days for monthly trends

Step 2: Generate report

Click the "🔄 Generate Drift Report" button to:

  1. Query production predictions from the selected time window
  2. Load reference training data
  3. Compare distributions using statistical tests
  4. Generate drift summary and visualizations

Step 3: Review results

The dashboard displays:

  • Overall drift status: Alert box indicating if dataset drift was detected
  • Drift metrics:
    • Drift Share: Percentage of features showing drift
    • Drifted Features: Count of features exceeding drift thresholds
    • Total Features: Number of features analyzed (~10)
  • Drifted features table: Feature name, drift score, statistical test used
  • Distribution comparisons: Visual charts comparing reference vs. production
